Beautifully crafted designs add the perfect finishing touch to our Sound Out™ Panels. Duo is designed in two parts, pairing our flat PET panels with one of six decorative base designs.

Product: Sound Out™ Duo

Composition: 100% Polyester Fiber (PET)

Panel Thickness: 0.47″ or 0.94″ (12, 24mm)

Panel Width: 47″ (1220 mm)

Overall Height: 109″ (2800 mm)

Base Height: 30″

Top Panel Height: 78″

V Groove Depth: 6.5mm (Frame 3mm & 11mm)

Custom: Trim pieces available based on finish wall size

Lead Time: 5-7 weeks (project specific)

Acoustics: ASTMC 423: 1” 0.75 NRC, 0.74 SAA; 1/2” 0.33 NRC, 0.30

Environmental: 75% recycled PET material. DFB’s entire Sound Out™ line is eco-friendly and VOC Free.

Duo Cut Sheet

Select A Style

All Duo designs are currently available in V groove patterns. Designs are exclusive to Duo, and carved into DFB’s PET panels using the same method we use for Sound Out™ Lane.

Click each image below for panel specifications.

Select A Base Design

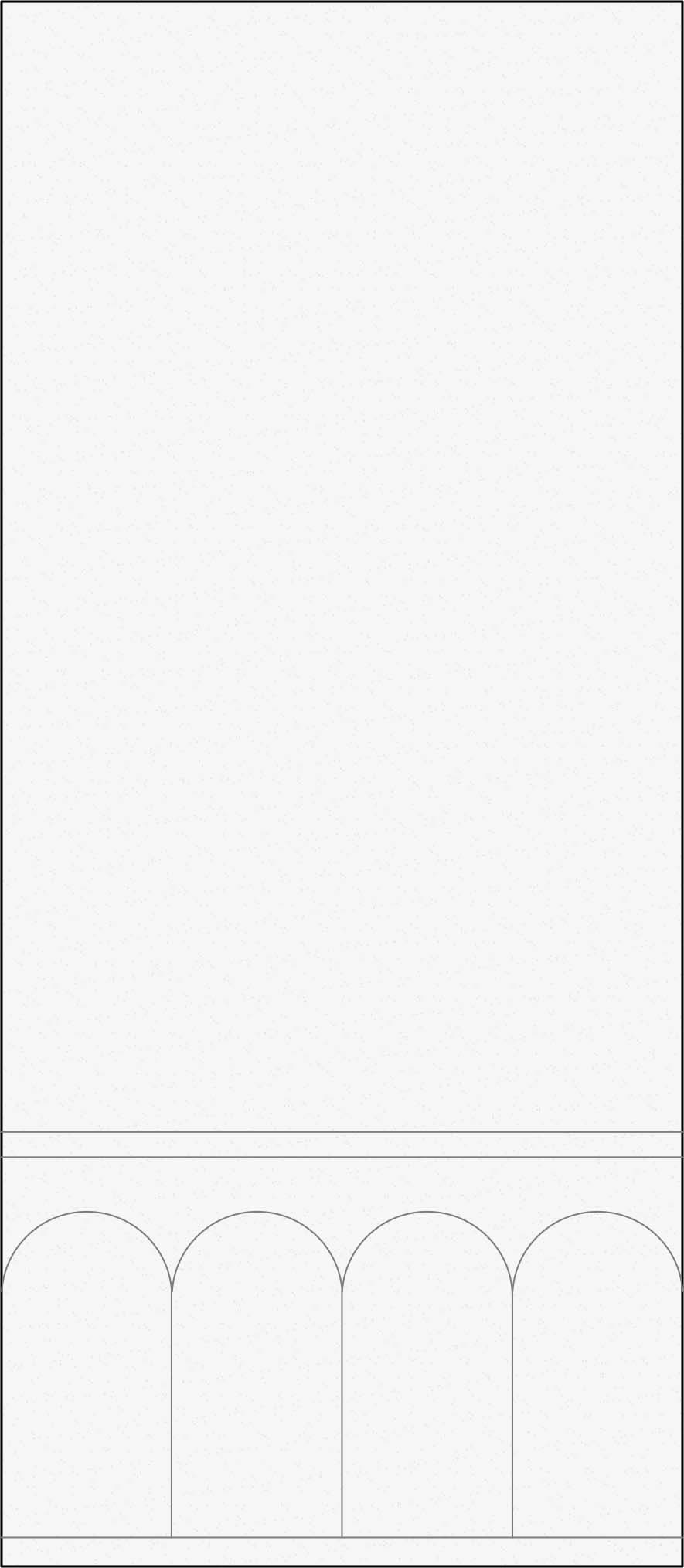

ARCH

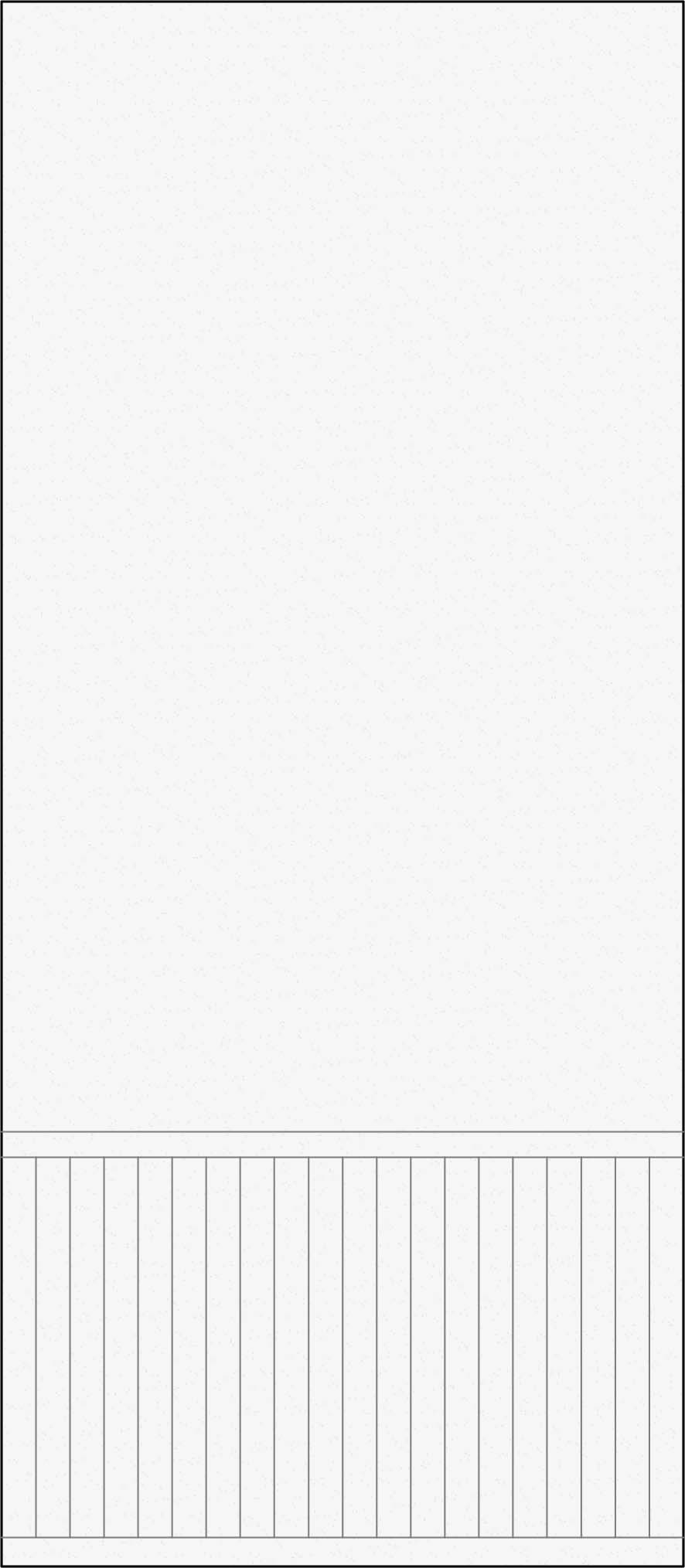

LINEAR 1

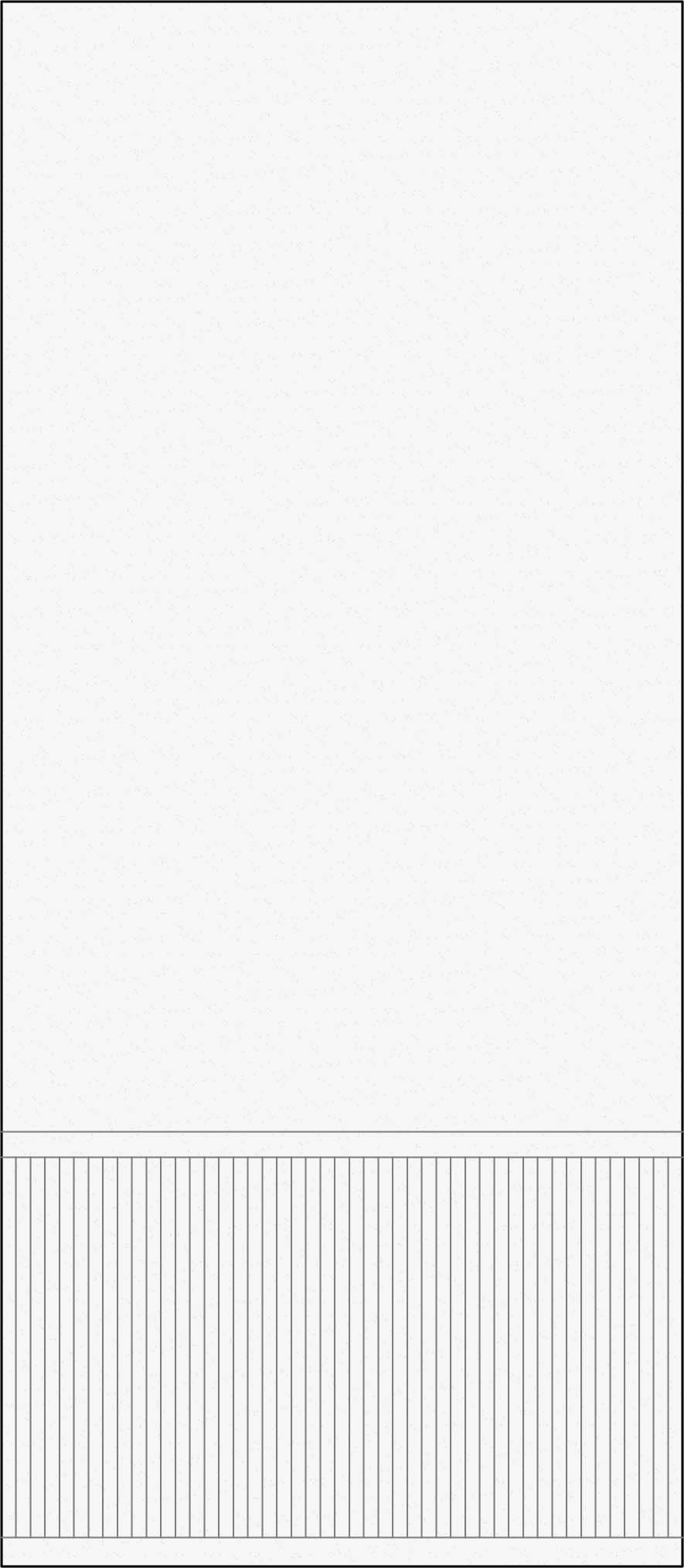

LINEAR 2

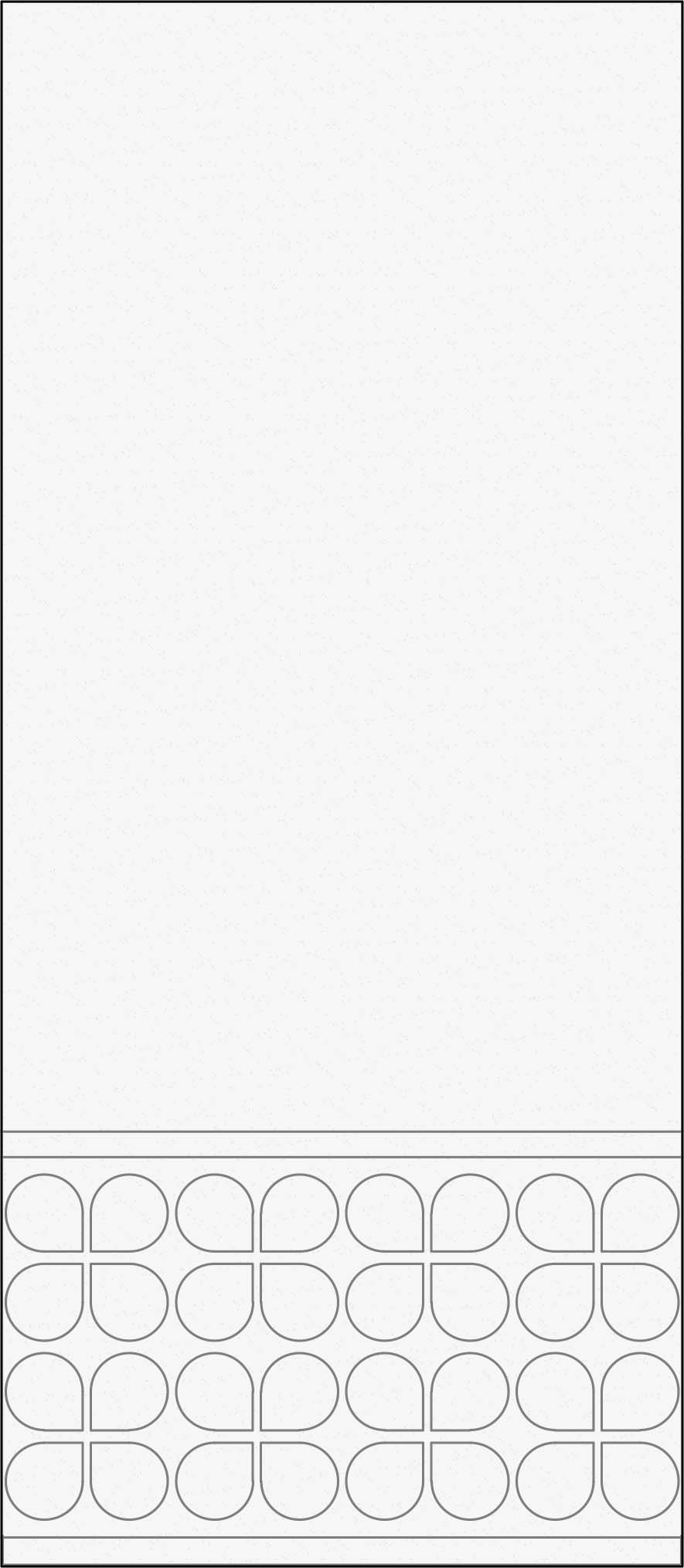

PETAL

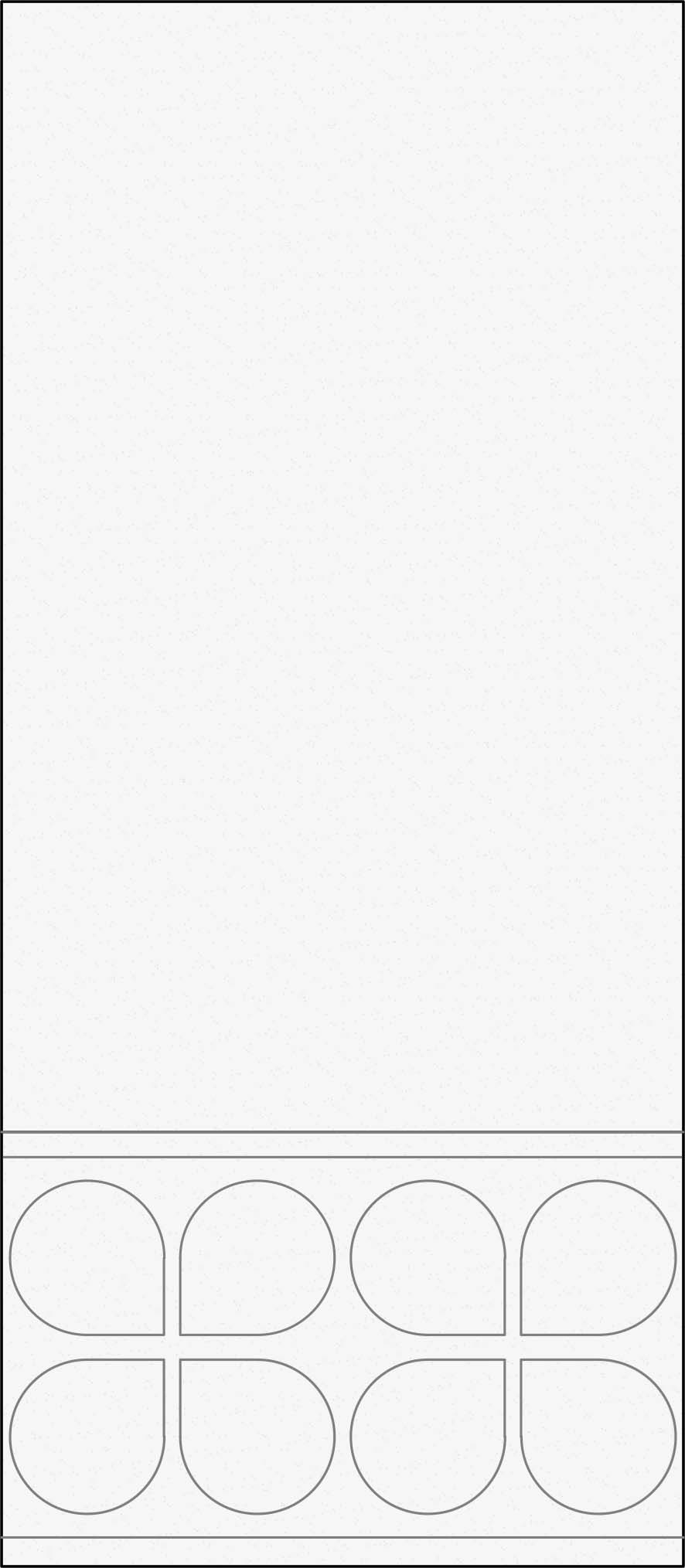

PETAL 2.0

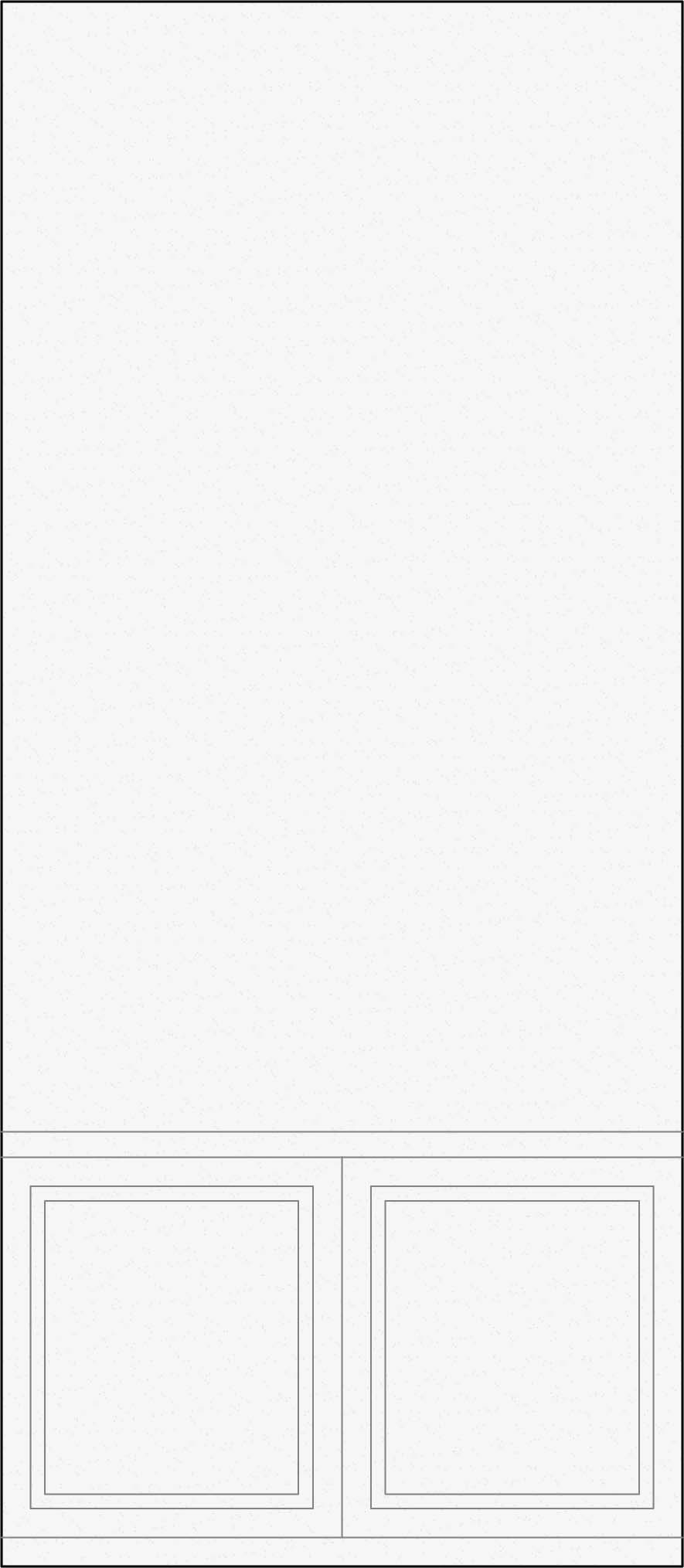

FRAME

Select A Color

Duo is available in 95 rich SO colors with the option of 2 quick ship neutrals, SO-05 & SO-25

SO-01

SO-02

SO-03

SO-04

SO-05

SO-06

SO-07

SO-08

SO-09

SO-10

SO-11

SO-12

SO-13

SO-14

SO-15

SO-16

SO-17

SO-18

SO-19

SO-20

SO-21

SO-22

SO-23

SO-24

SO-25

SO-26

SO-27

SO-28

SO-29

SO-30

SO-31

SO-32

SO-33

SO-34

SO-35

SO-36

SO-37

SO-38

SO-39

SO-40

SO-41

SO-42

SO-43

SO-44

SO-45

SO-46

SO-47

SO-48

SO-49

SO-50

SO-51

SO-52

SO-53

SO-54

SO-55

SO-56

SO-57

SO-58

SO-59

SO-60

SO-61

SO-62

SO-63

SO-64

SO-65

SO-66

SO-67

SO-68

SO-69

SO-70

SO-71

SO-72

SO-73

SO-75

SO-77

SO-78

SO-79

SO-80

SO-82

SO-83

SO-84

SO-85

SO-86

SO-89

SO-90

SO-91

SO-92

SO-93

SO-94

SO-95
